Sky 3-Phase Track Light

Sky series track light,it has three different power 20W/25W/30W. The housing body is relatively short in size, making it suitable for commercial spaces with low ceiling heights。

Product Description
  • ADC12 Die-casting aluminum with invisible screw design in appearance
  • Optics interchangeable between metalize Reflector and Segment Miro Silver reflectors.
  • Optional beam angle from 15° to 60° .
  • Vertical adjustable 355° / Horizontal adjustable 90° .
  • Convectional thermal dissipation fins for better lifespan guarantee.
  • Unique structure for SKD/efficient assembly, ZHAGA Compliant.
  • Custom Zooming version available
Technical Detail
Model
10609020
10610025
10611030
Dimensions [LxWxH]
Ø90*90mm
Ø100*100mm

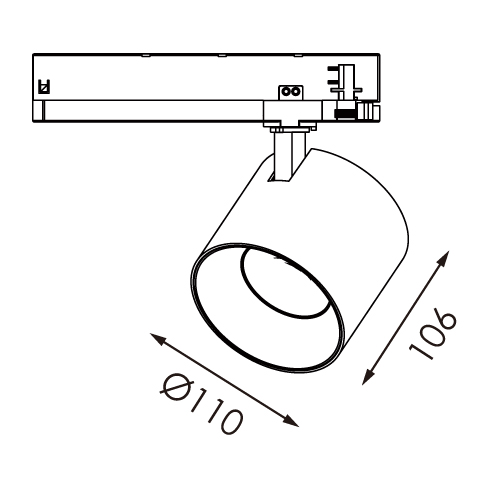

Ø110*106mm
Power consumption
20W
25W
30W
Luminous Flux
max.2160lm
max.2760lm
max.3360lm
Light beam angle
15°/24°/36°/60°
15°/24°/36°/60°
15°/24°/36°/60°
Service life
50,000 hours
50,000 hours
50,000 hours
Colour temperature
2,700, 3,000 or 4,000 Kelvin
2,700, 3,000 or 4,000 Kelvin
2,700, 3,000 or 4,000 Kelvin
Colour rendering index
CRI>80/90/97
CRI>80/90/97
CRI>80/90/97
Control interface
ON/OFF
ON/OFF
ON/OFF
IP rating
IP20
IP20
IP20
Luminaire housing
Aluminium powder-coated white, black or grey
Aluminium powder-coated white, black or grey
Aluminium powder-coated white, black or grey
Options
Phase alignment
Phase alignment
Phase alignment
