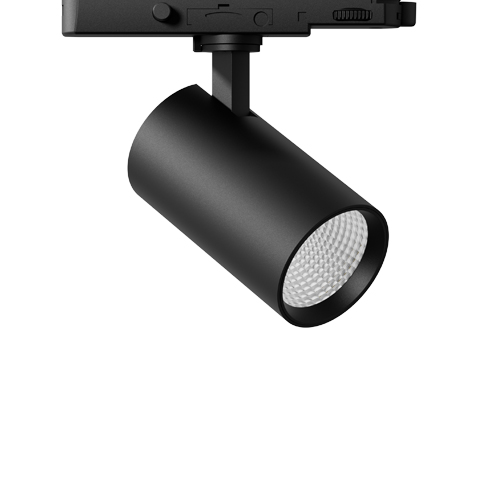

Nova Track Light/In-track

On the right track. Just like the planets they are named after, the track lights can also be moved on their tracks. In addition, the LED track lights can be swivelled and perfectly aligned again, should your exhibition change.

Contact Us
Product Description
  • 6063 cold forge aluminum with positive heat dissipation
  • Optics interchangeable between metalize Reflector and lens
  • Optional beam angle from 15° to 36° .
  • Vertical adjustable 355° / Horizontal adjustable 90° .
  • Convectional thermal dissipation fins for better lifespan guarantee.
  • Unique structure for SKD/efficient assembly, ZHAGA Compliant.
  • Custom Zooming version available
Technical Detail
Model
10906215
10907225
10908030
10909435

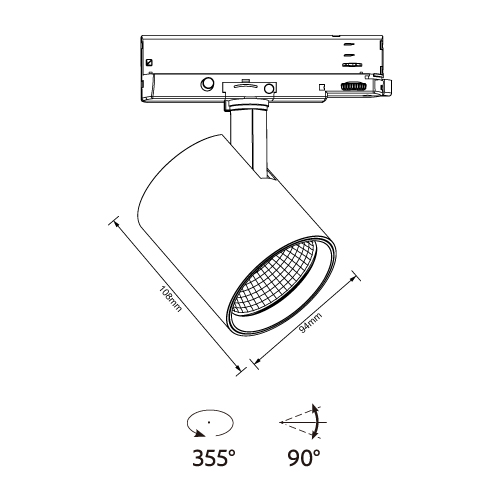

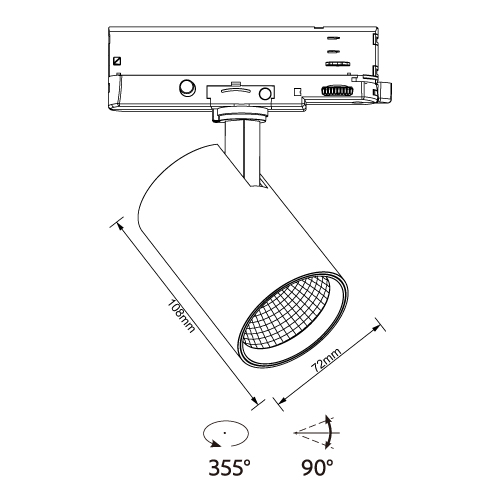

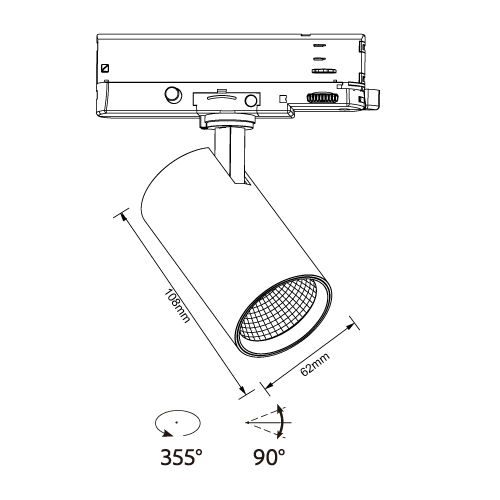

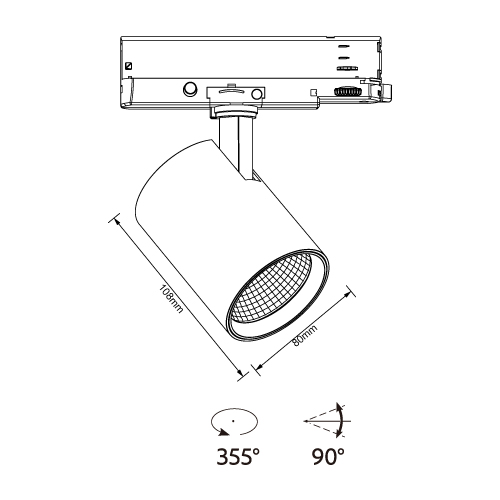

Dimensions
Ø62*108mm
Ø72*108mm
Ø80*108mm
Ø94*108mm
Power
15W
25W
30W
35W
Luminous Flux
1400lm
2330lm
2800lm
3250lm
Beam angle
15°/24°/36°
15°/24°/36°
15°/24°/36°
15°/24°/36°
Service life
50,000 hours
50,000 hours
50,000 hours
50,000 hours
Colour temperature
2,700, 3,000 or 4,000 Kelvin
2,700, 3,000 or 4,000 Kelvin
2,700, 3,000 or 4,000 Kelvin
2,700, 3,000 or 4,000 Kelvin
Colour rendering index
CRI>80/90/97
CRI>80/90/97
CRI>80/90/97
CRI>80/90/97
Control interface
ON/OFF DIMMING
ON/OFF DIMMING
ON/OFF DIMMING
ON/OFF DIMMING
IP rating
IP20
IP20
IP20
IP20
Luminaire housing
Aluminium powder-coated white, black or grey
Aluminium powder-coated white, black or grey
Aluminium powder-coated white, black or grey
Aluminium powder-coated white, black or grey
Options
Phase alignment
Phase alignment
Phase alignment
Phase alignment
