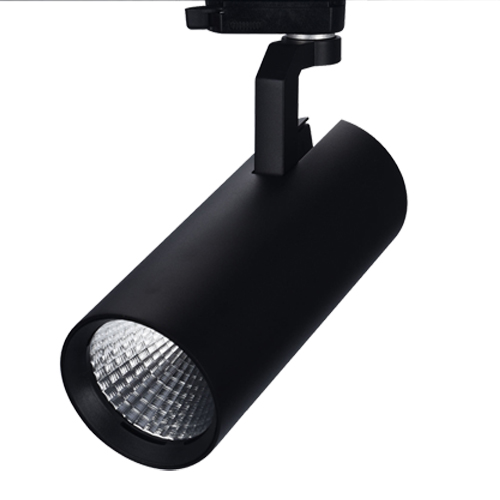

ADC12 Die-casting aluminum with Positive Heat dissipation Optics interchangeable between Lens and Reflector, system efficacy 145lm/w. Optional beam angle from 15° to 60° . Vertical adjustable 355° / Horizontal adjustable 90° . Convectional thermal dissipation fins for better lifespan guarantee. Unique structure for SKD/efficient assembly, ZHAGA Compliant. Custom Zooming version available.
Model | ST5111W |
|---|---|
Power | 30W |
Beam Angle | 15°/24°/36°/55° |
Cut-Out | / |
Installation | 3-phase / 1-phase |
Dimension | Φ80 x 120mm |
CCT | 2700K/3000K/3500K/4000K |
CRI | 90Ra/95Ra |
Luminous Flux | 3100lm |
LED | Origin Bridgelux COB |
Color | White / Black / Custom |
Surface finish | Powder Coating |
Material | Die Casting Aluminum |
IP Rate | IP20 |
Input Voltage | AC220-240V |
Vf & If | 30-42V 750mA |
