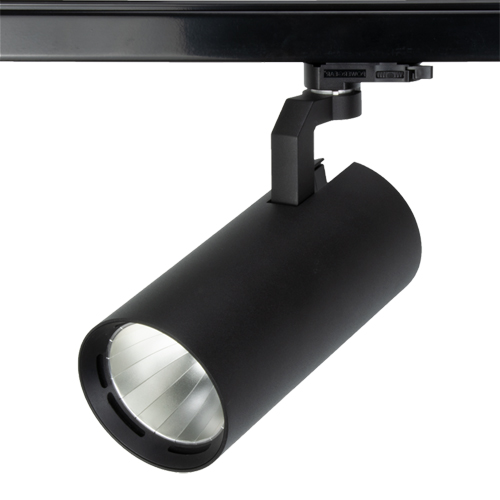

Galex Maxi 45W High Efficacy

Galex Midi 45W mainly used in high-end commercial place(clothing shops,furniture shop and other brand boutiques,star hotels,high-end clubs,museums,chain stores etc)

Contact Us

Product Description

  • ADC12 Die-casting aluminum with invisible screw design in appearance
  • Optics interchangeable between Lens and Reflector, system efficacy 150lm/w.
  • Optional beam angle from 15° to 60° .
  • Vertical adjustable 355° / Horizontal adjustable 90° .
  • Convectional thermal dissipation fins for better lifespan guarantee.
  • Unique structure for SKD/efficient assembly, ZHAGA Compliant.
  • Custom Zooming version available.

Technical Details

Model
10210045
Power
45W
Beam Angle
15°/24°/36°/60°
Cut-Out
/
Installation
3-phase / 1-phase

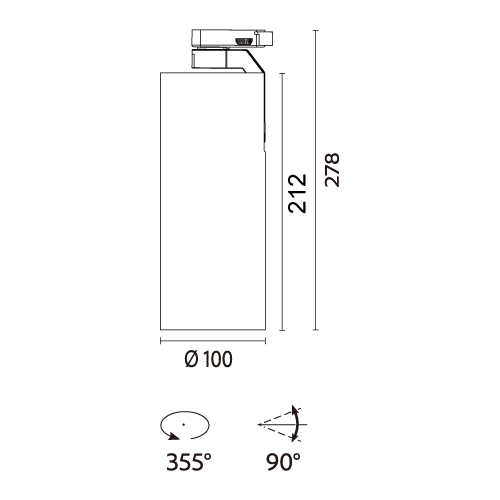

Dimension
Φ100 x 212mm
CCT
2700K/3000K/3500K/4000K
CRI
90Ra/95Ra
Luminous Flux
6300lm
LED
Origin Bridgelux COB
Color
White / Black / Custom
Surface finish
Powder Coating
Material
Die Casting Aluminum
IP Rate
IP20
Input Voltage
AC220-240V
Vf & If
30-42V 1250mA
