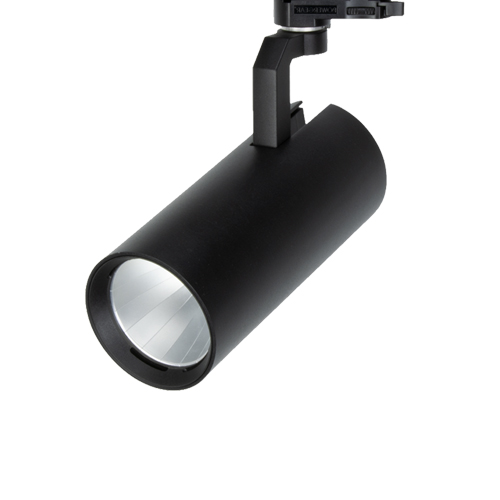

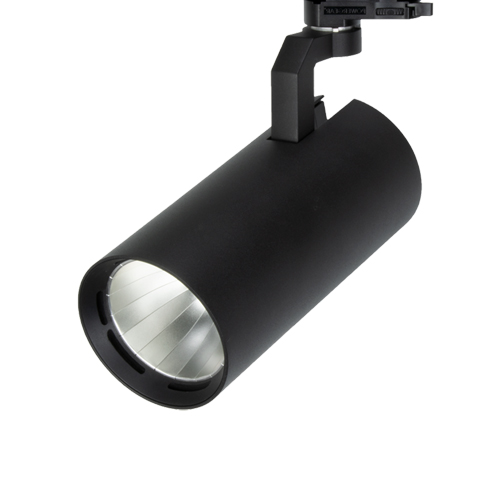

Galex High Efficacy Led Track Light

Galex series led track light,a high-quality lighting solution for commercial and residential spaces.there are three different size,15W/30W/45W.The Aluminium alloy die casting housing body with possitive heat dissipation,it assembly with the highest efficiency segment reflector, Energy-saving and environmental protection

Contact Us
Product Description
  • ADC12 Die-casting aluminum with invisible screw design in appearance
  • Optics interchangeable between Lens and Reflector, system efficacy 150lm/w.
  • Optional beam angle from 15° to 60° .
  • Vertical adjustable 355° / Horizontal adjustable 90° .
  • Convectional thermal dissipation fins for better lifespan guarantee.
  • Unique structure for SKD/efficient assembly, ZHAGA Compliant.
  • Custom Zooming version available
Technical Detail
Model
10208430
10210045

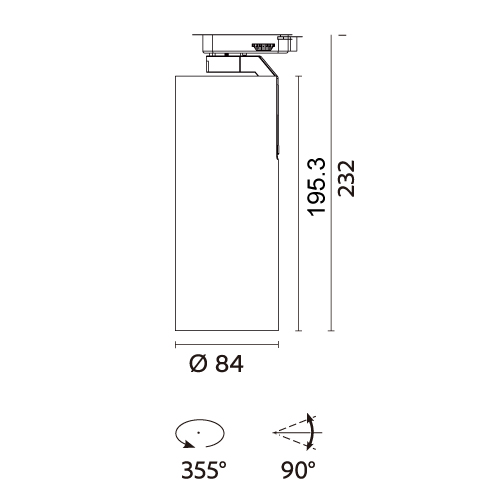

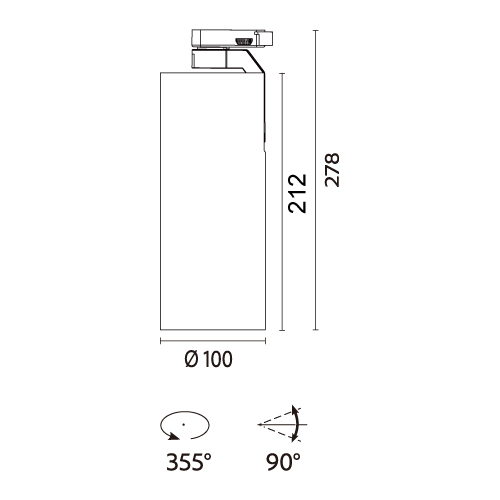

Dimensions [LxWxH]
84x195.3mm
100x212mm
Power consumption
30W
45W
Luminous Flux
max. 4050 lm
max. 6300 lm
Light beam angle
17°/24°/36°/60°
15°/24°/36°/60°
Service life
LED 50,000 hours at 70% of mean luminous flux
LED 50,000 hours at 70% of mean luminous flux
Colour temperature
White | 2,700, 3,000 or 4,000 Kelvin
White | 2,700, 3,000 or 4,000 Kelvin
Colour rendering index
CRI>80/90/97
CRI>80/90/97
Control interface
With ballast, not dimmable
With ballast, not dimmable
IIP rating
IP20
IP20
Luminaire housing
Aluminium powder-coated white, black or grey
Aluminium powder-coated white, black or grey
Options
Phase alignment DALI 1-10 V Optional CRI>90
Phase alignment DALI 1-10 V Optional CRI>90
