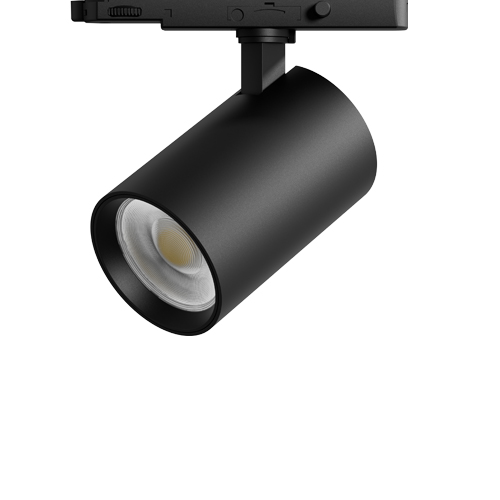

Fiam Track Light Deep Anti-Glare Lens

Fiam Track light with positive heat dissipation designed housing, It is entirely flexible in choice of light source, optic, paint finish, control system and mount method. It is truly maintainable, re-manufacturable and ultimately recyclable.

Contact Us
Product Description
-- 220-240V / 50-60Hz energy input. -- Intelligent cooling design with passive cooling technology. -- With 3-Phase universal rail adapter. -- Mechanical locking with 90° vertical and 350° horizontal movement capability joint system. -- DALI, Wireless DIM, Warm DIM and Dynamic White applications can be done. -- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied. -- Narrow, Medium, Wide and Very Wide lens angle options are available. -- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available. -- Efficiency up to 119lm/W. -- High color compatibility:<3 SDCM
Technical Detail
Model
11005512
11006518
11007525
11008530

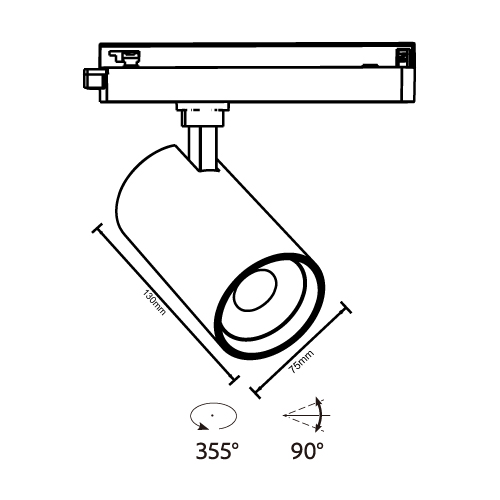

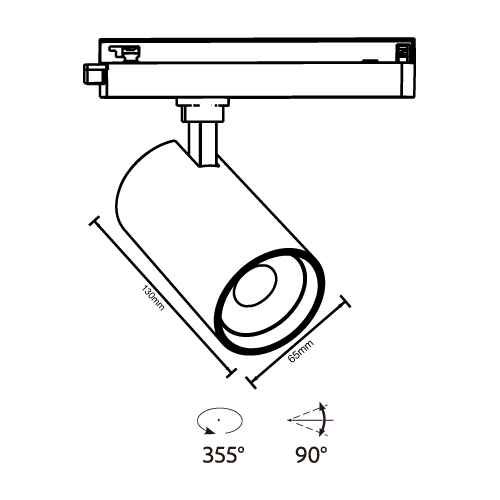

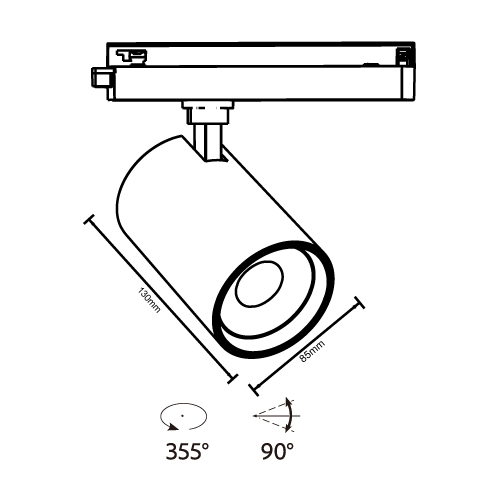

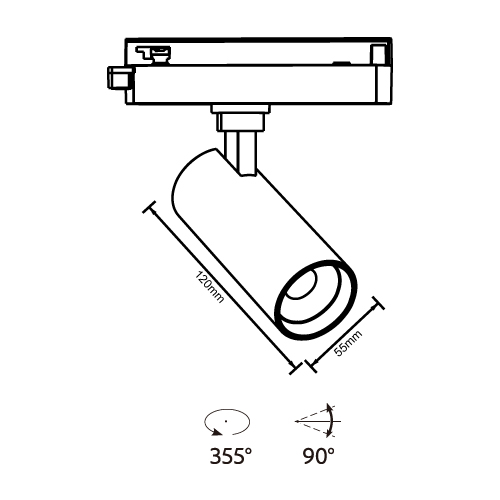

Dimensions
Ø55*120mm
Ø65*130mm
Ø75*130mm
Ø85*130mm
Power
12W
18W
25W
30W
Luminous Flux
1400lm
2100lm
2900lm
3500lm
Beam angle
15°/24°/36°
15°/24°/36°
15°/24°/36°
15°/24°/36°
Service life
50,000 hours
50,000 hours
50,000 hours
50,000 hours
Colour temperature
2,700, 3,000 or 4,000 Kelvin
2,700, 3,000 or 4,000 Kelvin
2,700, 3,000 or 4,000 Kelvin
2,700, 3,000 or 4,000 Kelvin
Colour rendering index
CRI>80/90/97
CRI>80/90/97
CRI>80/90/97
CRI>80/90/97
Control interface
ON/OFF DIMMING
ON/OFF DIMMING
ON/OFF DIMMING
ON/OFF DIMMING
IP rating
IP20
IP20
IP20
IP20
Luminaire housing
Aluminium powder-coated white, black or grey
Aluminium powder-coated white, black or grey
Aluminium powder-coated white, black or grey
Aluminium powder-coated white, black or grey
Options
Phase alignment
Phase alignment
Phase alignment
Phase alignment
